Bartelt HAB - VCC

The Bartelt HAB-VCC is an automatic-bottom cartoner specifically designed for vertical packing of fragile or irregularly shaped products. Ideal for industries like coffee, household products, pharmaceuticals, and candy/confectionery, the HAB-VCC provides reliable carton erection and closing, making it perfect for manufacturers looking for precision and control in packaging delicate items.

With a compact design and the ability to integrate with various automatic loading options, including robots and filling machines, the HAB-VCC achieves speeds of up to 25 cartons per minute. The model can operate as a stand-alone machine or paired with the VCC vertical carton closer for a complete packaging solution. Its open-frame design makes it easy to maintain and clean, while the modular build allows seamless integration into existing production lines.

  • Cartons are manually loaded into the carton magazine
  • Extruded, clear anodized aluminum frame provides durability and corrosion resistance
  • Horizontal pneumatic carton pick-off ensures efficient handling from the magazine
  • Carton blanks are removed from the bottom of the magazine using vacuum cups
  • As the carton is drawn across the table, a mechanism positively locks the bottom tabs to ensure reliable and repeatable carton erection
  • A discharge cylinder pushes the erected carton from the table onto an optional discharge conveyor for automatic or manual product loading
  • After product loading, the carton is transferred into the optional VCC model for closure
  • The tuck portion of the tuck flap is pre-conditioned and guided into the top of the carton
  • A closure cylinder locks the top flap, and the finished carton is discharged onto an optional conveyor
  • Low-carton indicator light alerts operators when replenishment is needed
  • Low-profile guarding system with safety interlocked doors enhances operator safety
  • Allen-Bradley CompactLogix PLC provides reliable and flexible control
  • Small footprint makes it ideal for tight production spaces
  • Easy to maintain, operate, and change sizes
  • Easily integrates with robots or other automated product fillers
  • Reduces risk of repetitive motion injury while lowering labor costs
  • Model VCC: Vertical Carton Closer with tuck or glue options
  • Discharge conveyors with or without gating for precise carton positioning
  • Carton coding systems for traceability and compliance
  • Integrated label applicators for branding and information
  • Vision systems for quality assurance and inspection
  • Robotic loading for enhanced automation and efficiency

Click on an industry to explore our capabilities.

Candy and Confectionary

Coffee

Household Products

Pharmaceuticals

Vitamins, Supplements and Nutraceuticals

Click on each packaging style to find the solution that fits your needs.

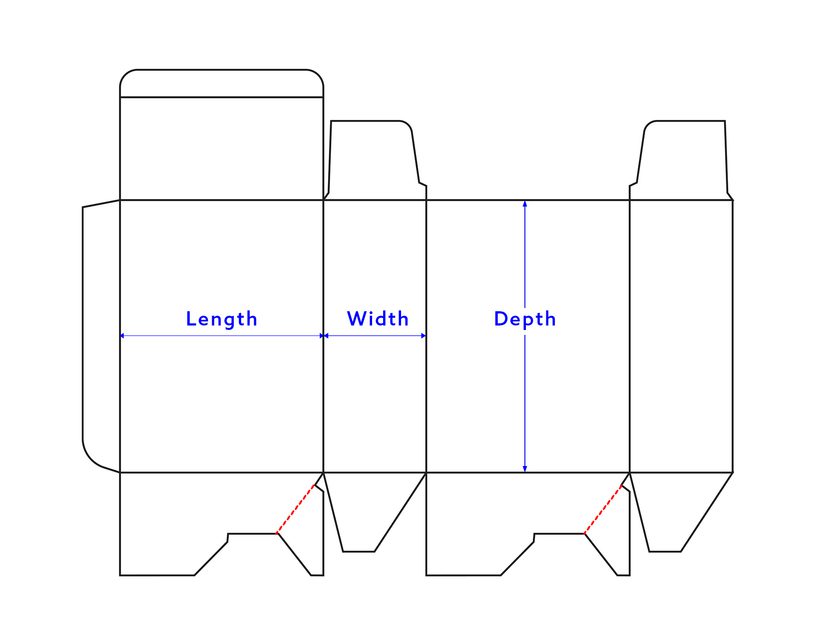

Standard Glued Flap Carton
