FL 1.4 / 1.7 HFFS Small Rollstock Poucher for Flat or Stand‑Up Pouches with Zippers/Spouts

The FL 1.4 and FL 1.7 are versatile horizontal form fill seal (HFFS) machines

designed to package a wide range of products into stand‑up pouches with zippers or Velcro™, corner or top spouts, 3‑ and 4‑side seal sachets, and custom shapes from rollstock, making them ideal for small‑ to medium‑scale operations requiring flexibility across spout and zipper applications.

Their robust mid‑size platform supports multiple filler configurations and delivers precise, leakproof filling for liquids, creams, powders, granules, and solids across food, beverage, pet food, pharmaceutical, and personal care markets. Available in simplex and duplex configurations, the series achieves speeds of 90 to 220 pouches per minute depending on format and filler.

An intuitive HMI touchscreen enables fast recipe changes and smooth changeovers with minimal downtime, while the durable, low‑maintenance design ensures long‑term reliability and is backed by a three‑year warranty for strong investment value.

The machines support zipper and spout applicators, multiple filling stations, and flexible solid and liquid filling solutions, including auger fillers; linear and rotary volumetric cup fillers designed and manufactured by FLtècnics; multihead and linear weighers; counting systems; and customized fillers for special applications, as well as mass and magnetic flow meters from Endress+Hauser and Bopp & Reuther, pneumatic‑ or servo‑driven piston fillers, customized liquid fillers, and a real‑time filling‑correction system standard on all flow‑meter dosing applications.

Evaluating equipment? Materials matter, too. Ask a CL&D representative about flexible packaging materials that align structure, seal, and speed with your new machine.

Horizontal-Form-Fill-Seal-Stand-Up-Pouch-FL-1-7-with-Corner-Valve

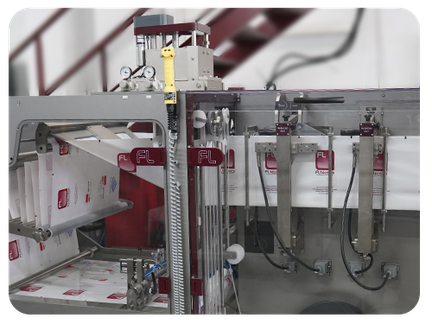

Motorized Film Alignment System

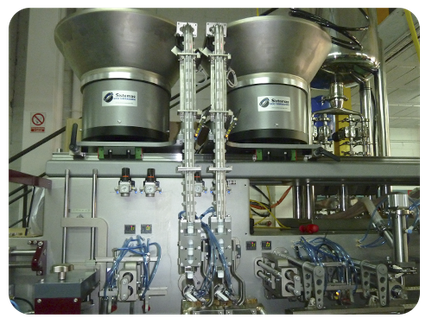

Top Corner Spout Applicatior

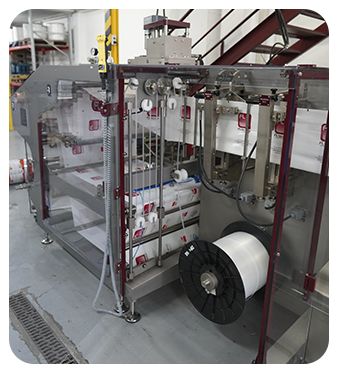

Zipper applicator

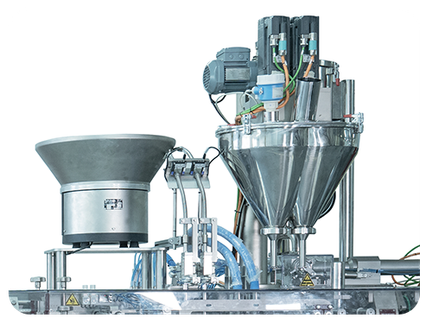

Multiple Filling Stations
hffs-rollstock-small-pouches-FL-1.4-1.7-2
hffs-rollstock-small-pouches-FL-1.4-1.7-4
FL 1 7 Horizontal Pre Made Pouch Dosing Tuna into Pouches & Cans
FL 1 4 H STU 1 Rollstock Poucher with External Straw Applicator
  • Full zipper‑format capability that supports a wide variety of zipper profiles or Velcro
  • AISI-304 stainless steel construction for durability, hygiene, and washdown environments
  • Motorized monobloc system with forming triangle and motorized film alignment for precise pouch formation
  • Real‑time film and pouch alignment control on every machine cycle for consistent accuracy
  • Independent, fully motorized modular spout applicator supporting both top and corner spouts within the same applicator
  • Up to three filling stations in a single machine layout
  • Combination of different filling systems on the same machine (solid and liquid)
  • High versatility for multi‑ingredient product applications requiring sequential or combined filling
  • Zipper or spout applicator
  • Multiple filling stations
  • Solid filling systems for powders, granules, and pieces:
    • Auger fillers
    • Volumetric cup fillers (linear and rotary), designed and manufactured by FLtècnics
    • Multihead and linear weighers
    • Counting filling systems
    • Customized fillers for special applications
  • Liquid filling systems for liquid and pasty products:
    • Mass and magnetic flow meters (Endress+Hauser, Bopp & Reuther)
    • Piston fillers with pneumatic or servomotor operation
    • Customized fillers for special applications
    • Real‑time filling‑correction system, standard on all flow‑meter dosing systems
  • FLT1 Size

    50x50 mm - 140x300 mm

  • FLT1 Volume

    600 cc

  • FLT1 Speed

    110 ppm

  • FLT2 Size

    45x60 mm - 70x300 mm

  • FLT2 Volume

    150 cc

  • FLT2 Speed

    220 ppm

  • STU1 Size

    60x60 - 140x300 mm

  • STU1 Volume

    900 cc

  • STU1 Speed

    90 ppm

  • STU2 Size

    60x60 - 70x300 mm

  • STU2 Volume

    200 cc

  • STU2 Speed

    180 ppm

  • TV1 Size

    85x100 - 140x300 mm

  • TV1 Volume

    900 cc

  • TV1 Speed

    90 ppm

  • CV1 Size

    85x100 - 140-300 mm

  • CV1 Volume

    900 cc

  • CV1 Speed

    90 ppm

  • FLT1 Size

    70x70 - 170x300 mm

  • FLT1 Volume

    750 cc

  • FLT1 Speed

    110 ppm

  • FLT2 Size

    50x60 - 85x300 mm

  • FLT2 Volume

    200 cc

  • FLT2 Speed

    220 ppm

  • STU1 Size

    70x70 - 170x300 mm

  • STU1 Volume

    1205 cc

  • STU1 Speed

    90 ppm

  • STU2 Size

    60x60 - 85x300 mm

  • STU2 Volume

    250 cc

  • STU2 Speed

    180 ppm

  • TV1 Size

    85x100 - 170x300 mm

  • TV1 Volume

    1250 cc

  • TV1 Speed

    90 ppm

  • CV1 Size

    85x100 - 170x300 mm

  • CV1 Volume

    1250 cc

  • CV1 Speed

    90 ppm
